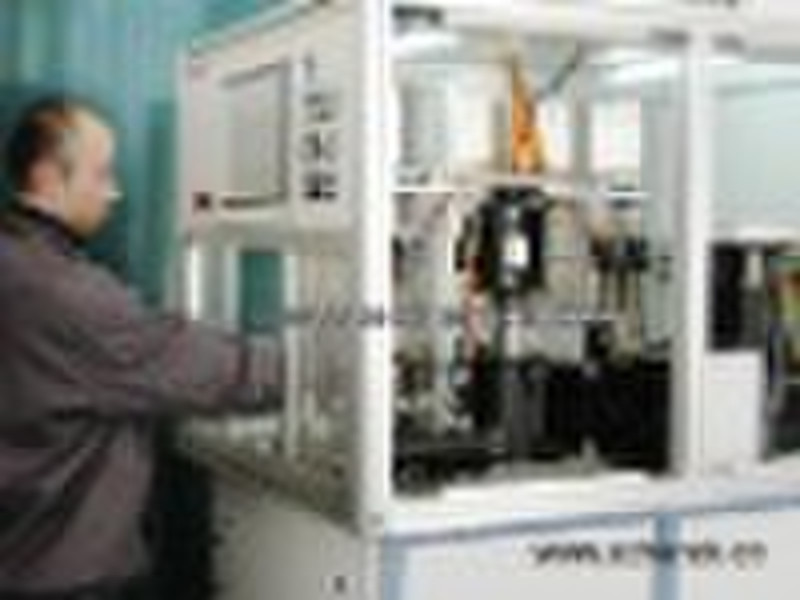

Schenck Automatic Balancing Machine RBTU

Automatic Balancing MachineType RBTU Schenck Automatic Balancing Machines Digital measurement and control German original measuring unit base on Windows XP operation system and human-machine interaction German rich mechanical design and manufacture experience Digital measurement and control Software system can be recovered by backup conveni-nently Be capable to connect armature production line Support remote control and maintenance Product SpecificationApplication of this Balancing machine The balancing machine is designed for measuring and correction theunbalance of various kind of armatures. Be able to connect armatureproduction lines to attain a high production rate.Unbalance correction by slot milling, polar profile milling or drilling.Correction Procedure Polar Profile MillingThe unbalance is corrected in the measured angular position regardless to the slot division.Slot Milling in ComponentsIn accordance to the number of pole heads the measured unbalance issplit into components and corrected by slot milling into the pole headsof the rotor stack.Drilling Correct the unbalance by drilling into the lamination or pole claws Product parametersPermissible Rotor Sizes weight Max. kg 1.5 Depending on weight and shaft diameter either prism or roller bearing are used in the measuring station. Shaft length Max. mm 230 Shaft diameter Max. mm 12 Stack height Max. mm 70 Stack diameter Max. mm 80 Cycle Time 17s Above technical data will be amended because of improving balancing machines.
